ASTM Concrete Impregnated Canvas 3D Weaving Waterproof

CHANGZHOU PIONEER TEXTILE TECHNOLOGY LTD
Contact Now

ASTM Concrete Impregnated Canvas 3D Weaving Waterproof

Brand Name : PIONEERTEX

Model Number : concrete impregnated canvas

Certification : ISO9001 and ISO14001

Place of Origin : Jiangsu, China

MOQ : 2000 Square Meter/Square

Price : $2.68 - $2.98 / Square Meter

Payment Terms : T/T, L/C

Supply Ability : 500 Square Meter/Square Meters per Day

Delivery Time : 2-3weeks

Packaging Details : standard exporting PP woven fabric packaging outside

Geotextile Type : Woven Geotextiles

Color : White

Material : polyester

Keyword : Concrete fabric forms

Product name : concrete to Canvas

Function : Filtration Reinforcement Seperation Protection

MOQ : 200 sqm

Weave : special 3D weaving technology

Size : made to order

Port : changzhou port or shanghai port

Contact Now

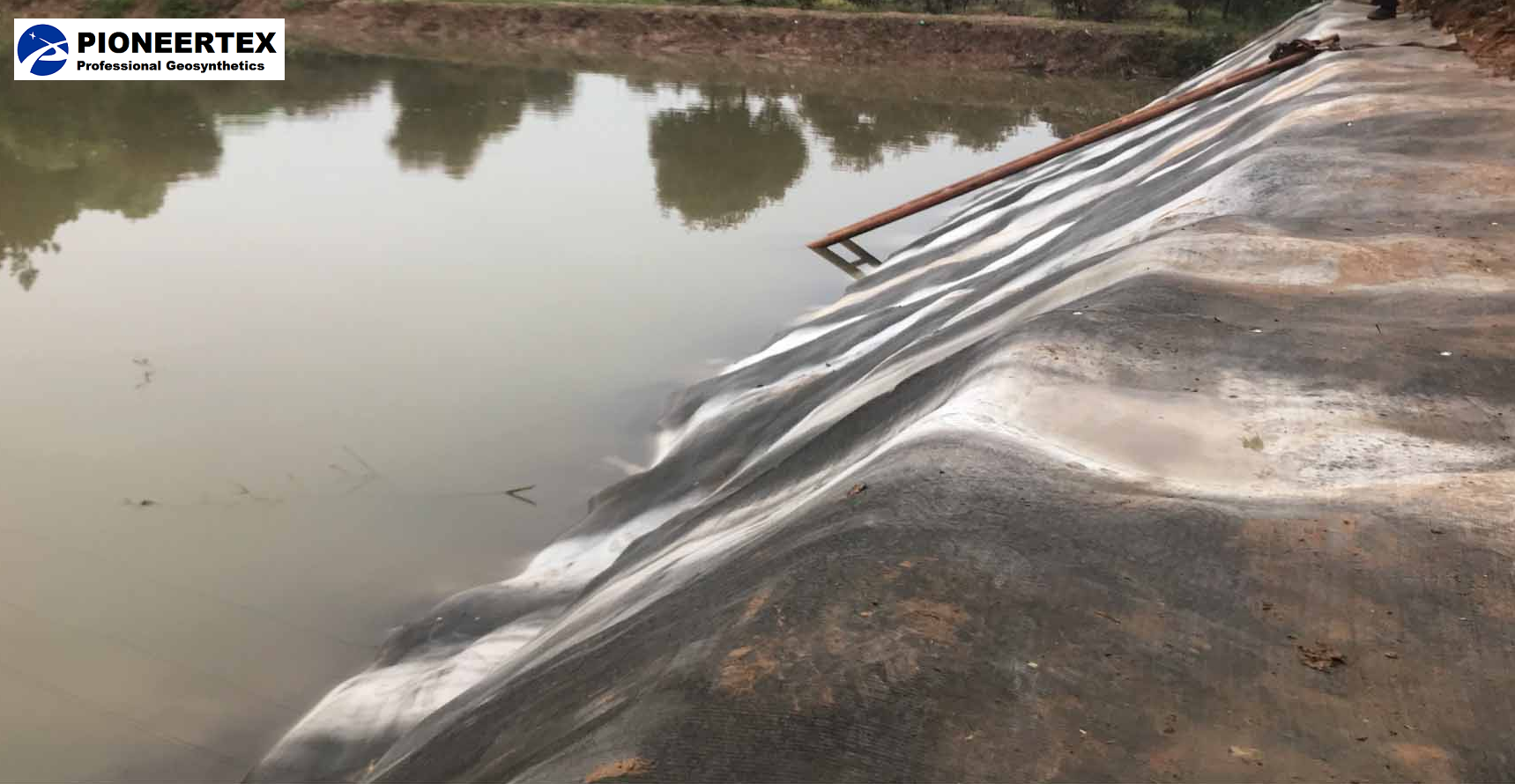

Concrete Impregnated Canvas for Ditch lining

Cement Canvas(Concrete Impregnated Canvas) GCCM is a flexible and soft cement impregnated fabric, that hardens on hydration to form a thin,durable,water proof and fire retardant concrete layer. Essentially, it's .

Cement Canvas GCCM allows concrete construction without the need for plant or mixing equipment. It's very easy, and just add water on the CC top face-canvas side.

Cement Canvas GCCM was made of 3D spacer fabric and Glass roving woven geotextile or HDPE geo-membrane. The specially formulated dry concrete powder mix will be reinforced by 3D spacer fabric in the middle, and covered by glass roving geotextile or water-proof HDPE geo-membrane.

Once set, the 3D spacer fabric will reinforce the concrete, prevent crack propagation and provide a safe plastic failure mode. The glass roving at the bottom will offer special protection on the CC, and offer higher tensile strength for composite.

HDPE geo-membrane backing at the bottom face of CC ensures the material is completely water proof. Cement Canvas GCCM is available in 4 thickness CC5, CC8, CC10 and CC13, which are 5,8,10 and 13mm thick respectively.

ITEM TEST METHOD 5MM 8MM 13MM
Flexural Strength (Final) ASTM D8058 4.0MPa 4.0MPa 4.0MPa
Compressive Strength ASTM D8329 40Mpa 50Mpa 60Mpa
Tensile Strength(unset) ASTM D6768 8KN/M
Tensile Strength(set-final) ASTM D4885 20KN/M 25KN/M 30KN/M
Abasion(Max.value) ASTM C1353 0.3MM/1000 cycles
REMARK: CC10 data sheet is between 8mm and 13mm.
